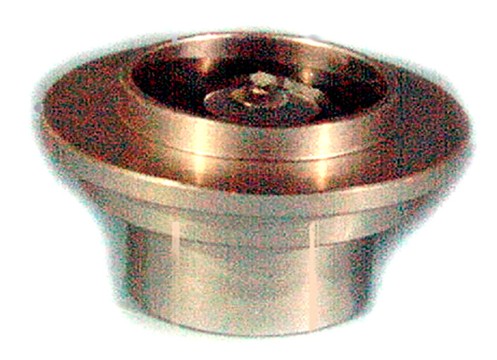

WABCO Flap Assembly for Square Relay
MM1485
Relay Control Valves · Catalogue page 93
Product details
Goes with MM22496
All products
Relay Control Valves repair kits
Relay control valve kits, modulators and components.
37 product lines · ManuMark 2026 catalogue
Fitting notice: Air brake components must be fitted by a qualified technician and matched to your vehicle’s exact part number.
37 products

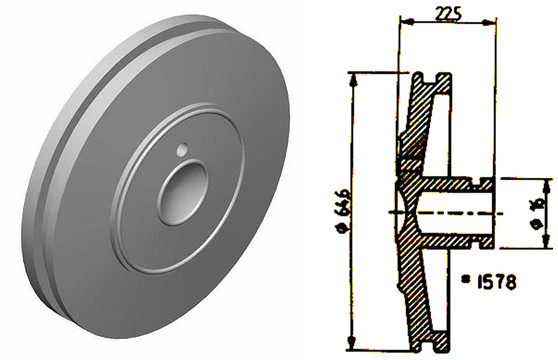

Piston for 471 005 020 0 – Relay Emergency Valve
MM1578
Relay Control Valves · Catalogue page 93
Product details
VALVE No. 10 S4

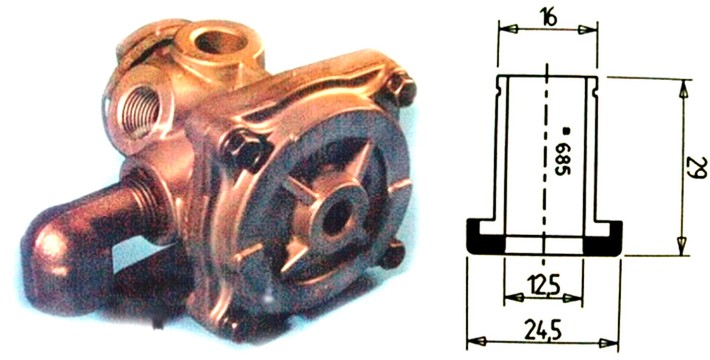

Japanese Relay
MM22213
Relay Control Valves · Catalogue page 93
Product details
VALVE No. SANWA SEIKI FUSO J.K.C. ISUZU NISSAN HINO Alternate Part Numbers 45171-99005 A.S.A. : 6292 W/H : 645012-M

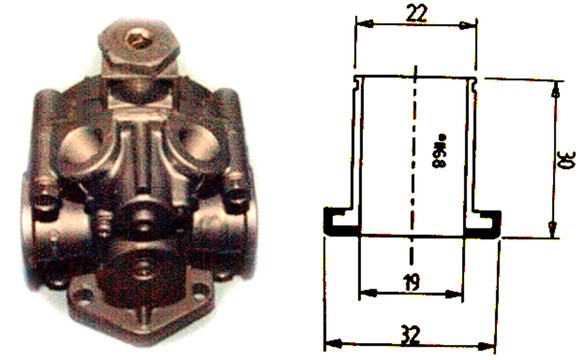

R8 Relay Valve
MM22279
Relay Control Valves · Catalogue page 93
Product details
VALVE No. Alternate Part Numbers W/H : 645009-M

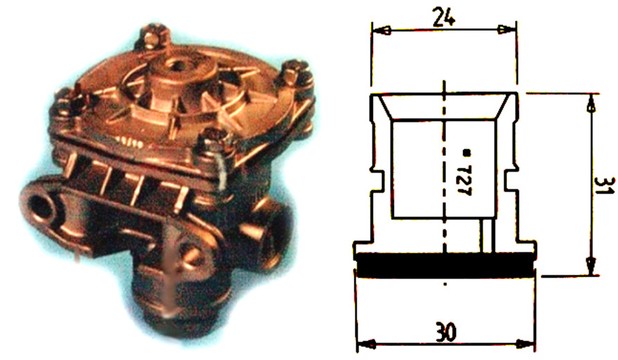

Japanese Relay
MM22320
Relay Control Valves · Catalogue page 94
Product details
VALVE No. SANWA SEIKI Alternate Part Numbers 45165-99026 A.S.A. : 5919 W/H : 645008-M

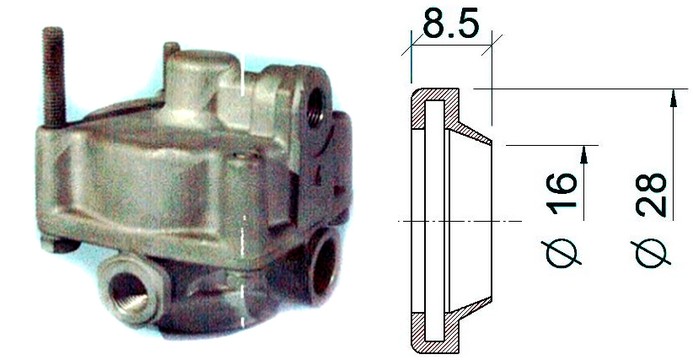

KNORR Square Relay
MM22438
Relay Control Valves · Catalogue page 94
Product details
VALVE No. RE 1115 RE 2221 RE 1144 Alternate Part Numbers KNORR : I 68094 W/H : 645006-M 2 per KIT

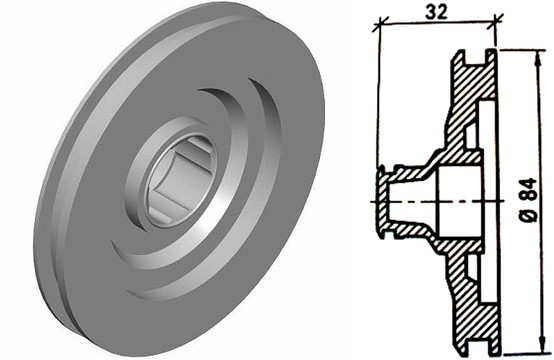

Piston for MM22438
MM22438/1
Relay Control Valves · Catalogue page 94
Refer to our sales team for compatibility details.

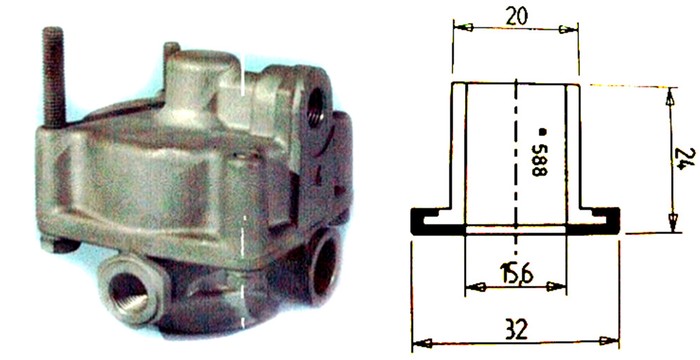

BOSCH Square Relay
MM22450
Relay Control Valves · Catalogue page 94
Product details
VALVE No. 0481 026 006 Alternate Part Numbers BOSCH : 1487 010 101 A.S.A. : 6366 W/H : 645005-M

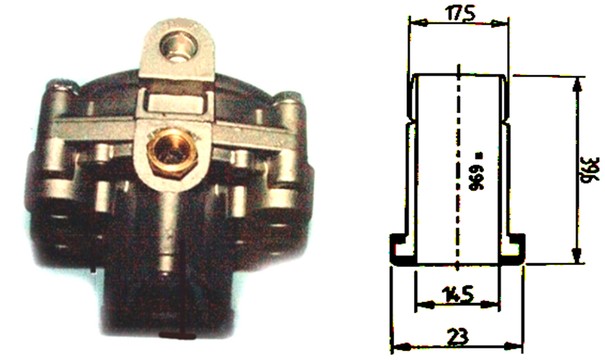

RE6 Relay
MM22476
Relay Control Valves · Catalogue page 95
Product details
VALVE No. Alternate Part Numbers A.S.A. : 5348 W/H : 654004-M BENDIX : SK 2677/1

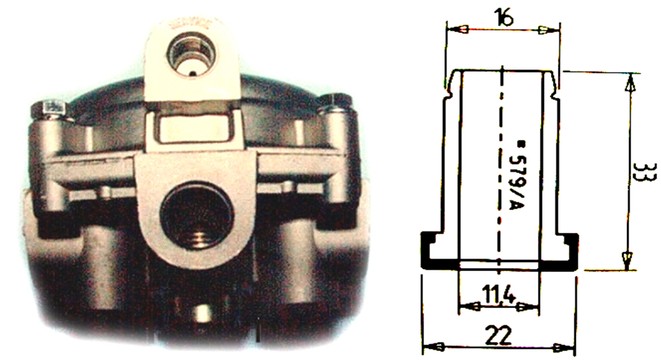

R6 Relay
MM22477
Relay Control Valves · Catalogue page 95
Product details
VALVE No. Alternate Part Numbers WABCO : 263945 W/H : 645003-M BENDIX : SK 2661/1

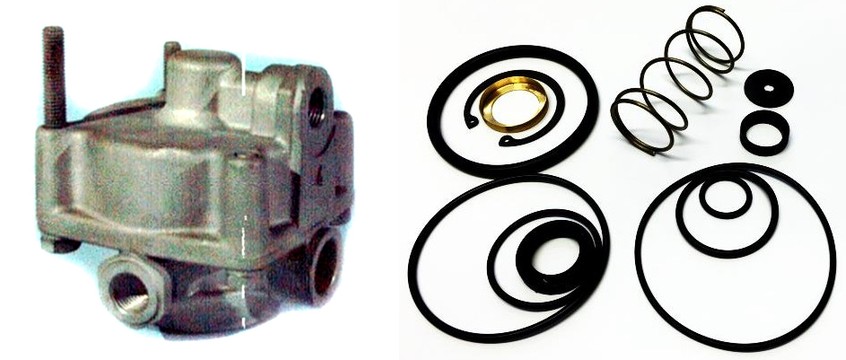

WABCO Square Relay
MM22496
Relay Control Valves · Catalogue page 95
Product details
VALVE No. 973 001***0 For Flap Assembly see MM1485 Alternate Part Numbers WABCO : 973 001 0002 A.S.A. : 5198 W/H : 645002-M

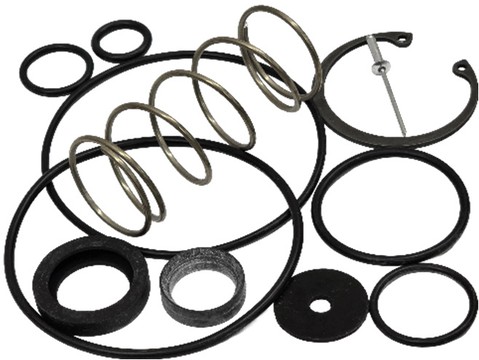

WABCO Square Relay (New Generation)
MM22496/1
Relay Control Valves · Catalogue page 95
Product details
VALVE No. 973 001 210 022

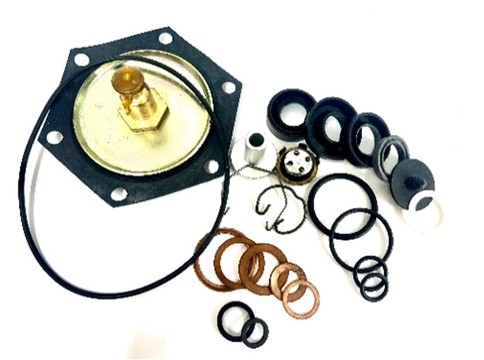

HEX Relay Valve
MM33017
Relay Control Valves · Catalogue page 96
Refer to our sales team for compatibility details.

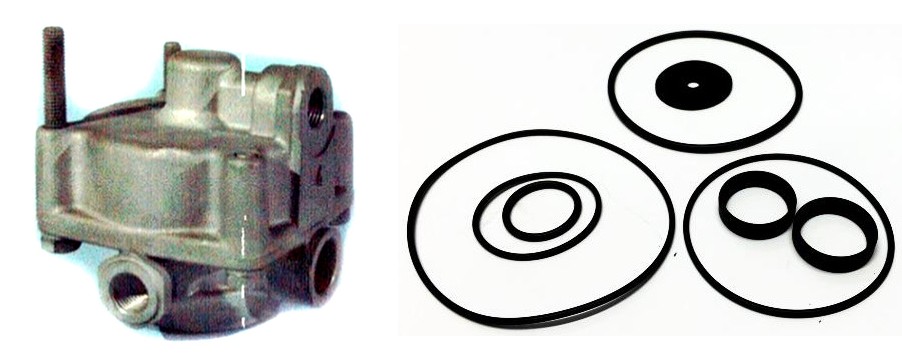

GRAU Square Relay
MM33051
Relay Control Valves · Catalogue page 96
Product details
VALVE No. 355 018 011 Alternate Part Numbers GRAU : 950 355 004

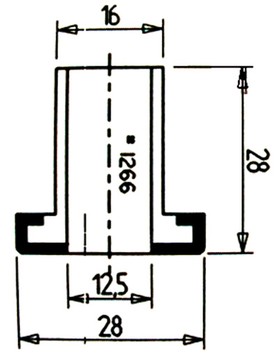

Japanese Relay Valve (TOYOTA HINO)
MM33055
Relay Control Valves · Catalogue page 96
Refer to our sales team for compatibility details.

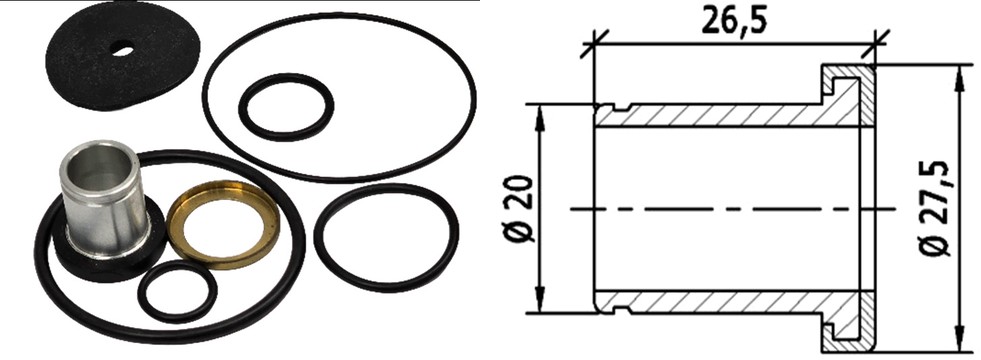

BENDIX R9 Relay Valve
MM33067
Relay Control Valves · Catalogue page 96
Refer to our sales team for compatibility details.

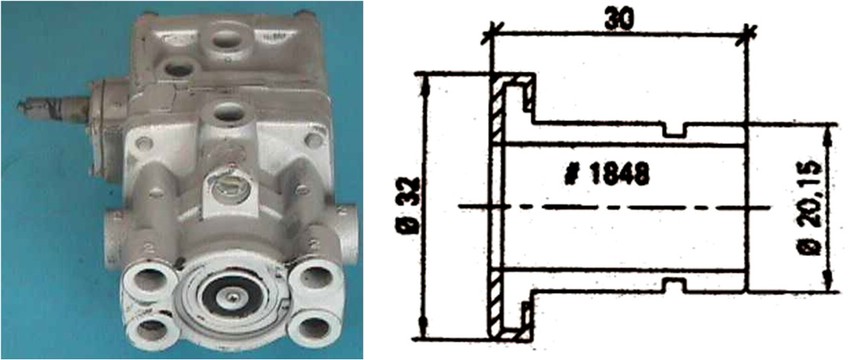

GIRLING Relay Emergency Valve
MM33070
Relay Control Valves · Catalogue page 97
Product details
VALVE No. Also HALDEX Alternate Part Numbers GRAV : 75611959

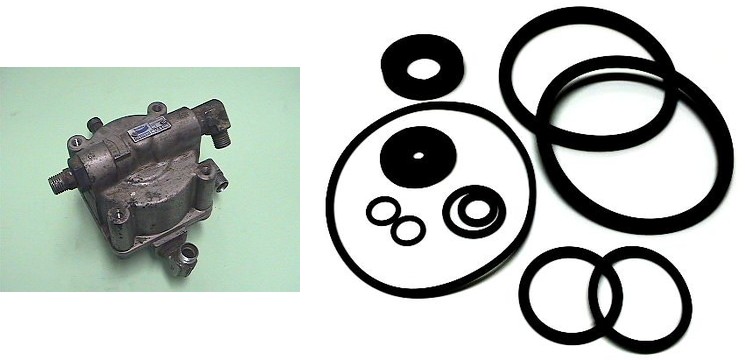

MAGNETT MARELLI Dual Square Relay
MM33083
Relay Control Valves · Catalogue page 97
Product details
VALVE No. AC 586 AA Alternate Part Numbers BENDIX : 9412

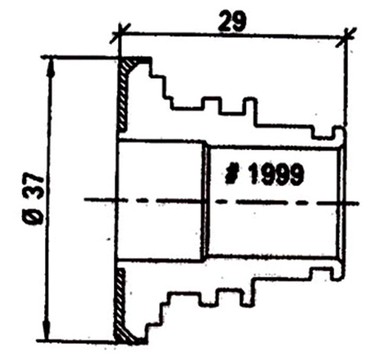

VOLVO Square Relay
MM33091
Relay Control Valves · Catalogue page 97
Product details
VALVE No. 0481 026 019 0481 026 021

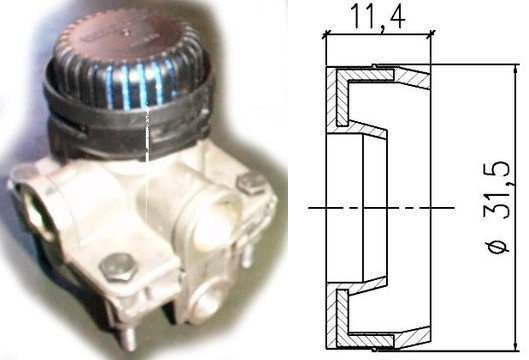

WABCO Square Relay Valve
MM33102
Relay Control Valves · Catalogue page 97
Product details
VALVE No. 475 720 0050 475 721 0080 480 020 0020 480 202 0040 973 011 0010/0040/2000 AXOR WABCO LOAD SENSING For Double see MM33199

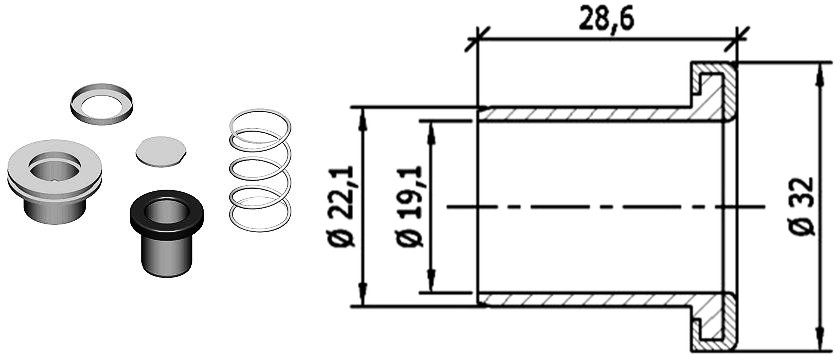

Relay Valve for R12 & R14
MM33116
Relay Control Valves · Catalogue page 98
Product details
INTERNATIONAL KIT No. Also fits TATA Includes O-Rings

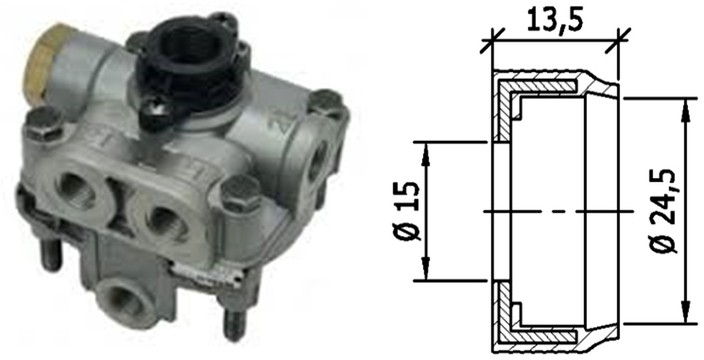

BOSCH Square Relay Valve / SCANIA
MM33118
Relay Control Valves · Catalogue page 98
Product details
VALVE No. 0481 026 027

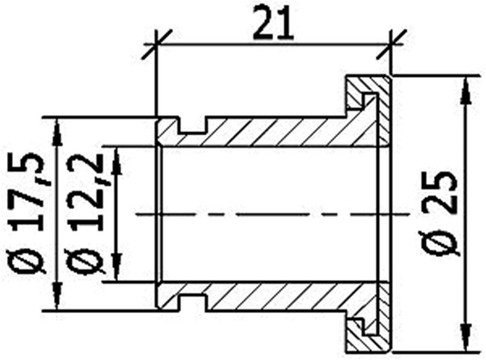

GRAU Skid Check Valves
MM33135
Relay Control Valves · Catalogue page 98
Refer to our sales team for compatibility details.

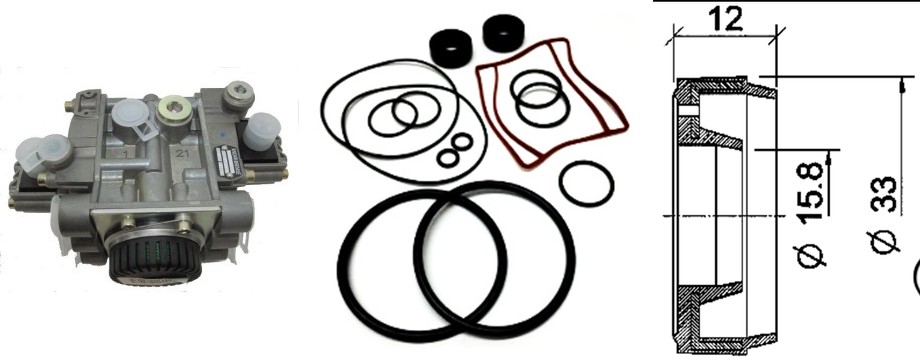

KNORR Relay Modulator Valve
MM33146
Relay Control Valves · Catalogue page 98
Product details
VALVE No. BR 9231 BR 9233

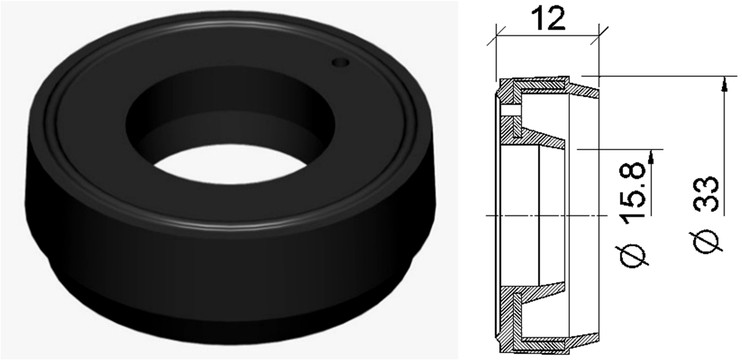

KNORR Square Relay (ABS)
MM33157
Relay Control Valves · Catalogue page 99
Product details
VALVE No. AC 574 AXY BR 9234 KO 27900VOO

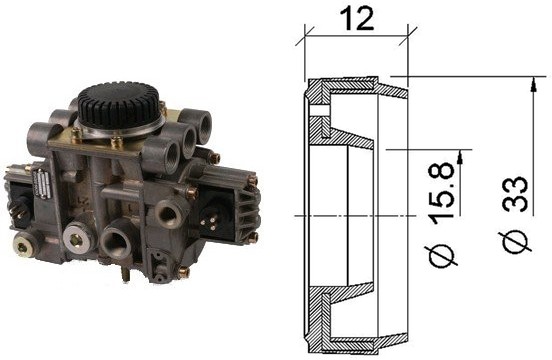

KNORR Trailer Modulator (EBS)
MM33157/1
Relay Control Valves · Catalogue page 99
Product details
VALVE No. ES2005 BR 9233

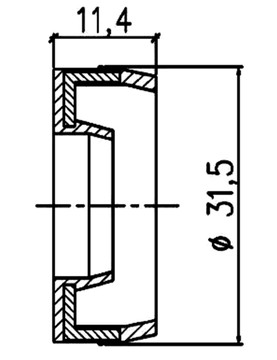

KNORR/DAF Square Relay
MM33167
Relay Control Valves · Catalogue page 99
Product details
PART No. DAF AC577A AC 574 AXY AK 1482-40354 ES 2053 Pistons ONLY Also Fits 456 204 017 2 x KITS Includes O-Rings

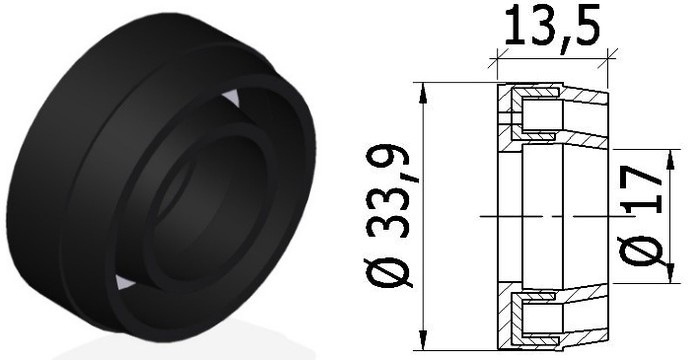

KNORR BREMSE Relay Control (MAN TGA)
MM33179
Relay Control Valves · Catalogue page 99
Product details
PART No. 0717 403 A KNORR BREMSE VOLVO 20828241 81.52106.6025 81.52106.6041 MAN 81.52103.6014 81.52106.6042/46/48/49/50 Double uses 2 x KITS (FOR EBS5 001411 – 2 REQ)

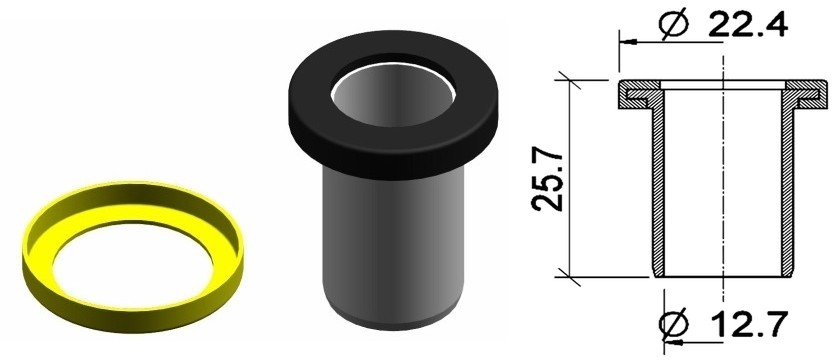

HALDEX Square Relay (Western Star)
MM33180
Relay Control Valves · Catalogue page 100
Product details
9 732 980 140

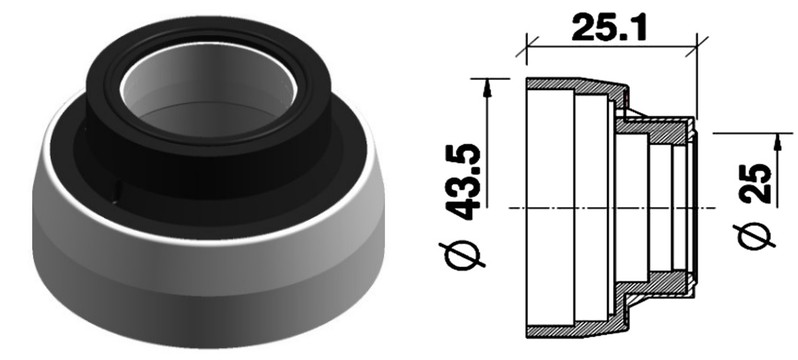

HALDEX ABS Relay Valve
MM33183
Relay Control Valves · Catalogue page 100
Product details
364 11 5021/M5144 364 263 021/031

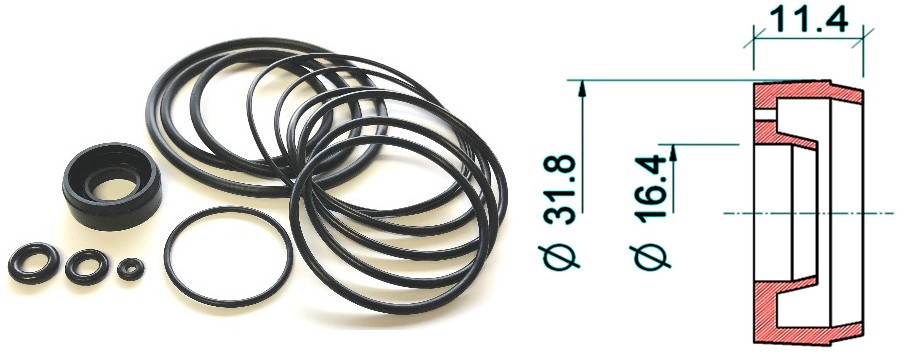

KNORR BREMSE ABS Relay Valve - Single
MM33192
Relay Control Valves · Catalogue page 100
Product details
Single (1 x SEAT) #81 52106 6013/14 0481 026.023 AXOR SCANIA 0 486 204 019 For Double see MM33192/1

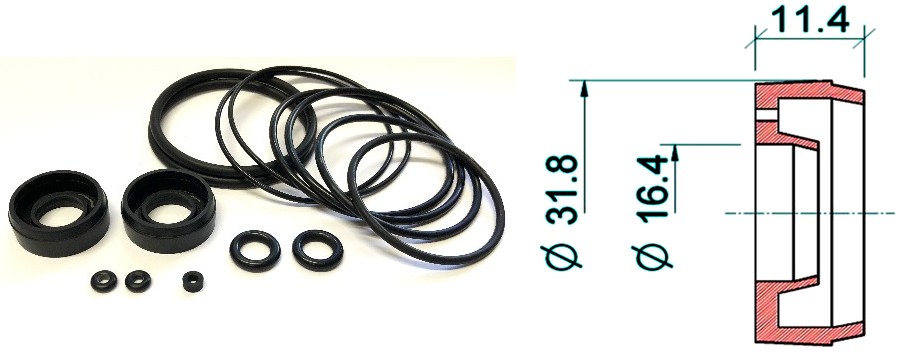

KNORR BREMSE ABS Relay Valve - Double
MM33192/1
Relay Control Valves · Catalogue page 100
Product details
Double (2 x SEAT) 0 486 204 018 For Single see MM33192

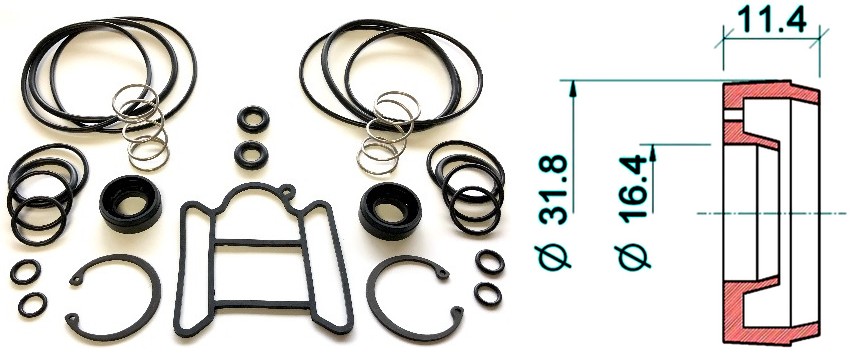

WABCO Double ABS Modulator Relay Valve
MM33199
Relay Control Valves · Catalogue page 101
Product details
RL 351822 472 195 0410/0440 NISSAN UD 410/440 For Single see MM33102

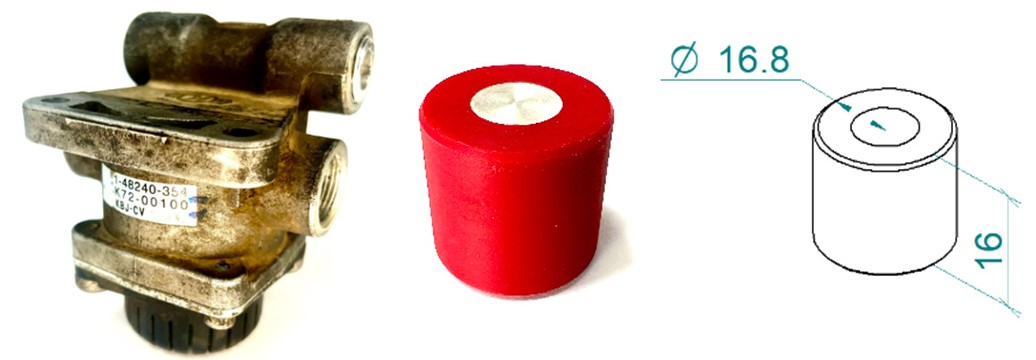

Shuttle Valve for ISUZU Combination Relay
MM33219
Relay Control Valves · Catalogue page 101
Product details
VALVE No. 1-48240-354 K72-00100 KBJ-CV

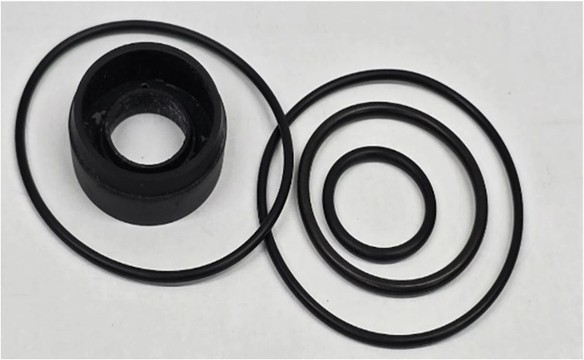

SEALS Only for ISUZU K72-00100
MM33219/1
Relay Control Valves · Catalogue page 101
Product details
SEALS ONLY For ISUZU K72-00100 Relay KNORR 1-48240-354 KBJ-CV

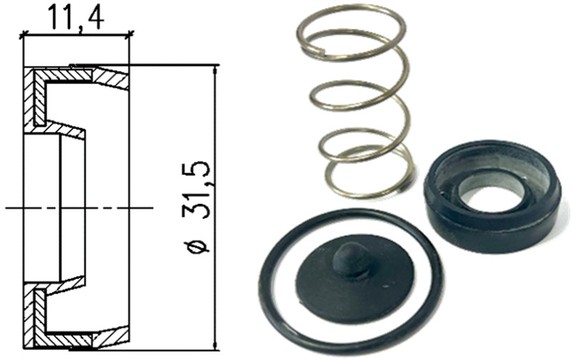

Anticompound Valve for ISUZU FTR800
MM33221
Relay Control Valves · Catalogue page 101
Product details
VALVE No. 1-48240-354 K72-00100 KBJ-CV

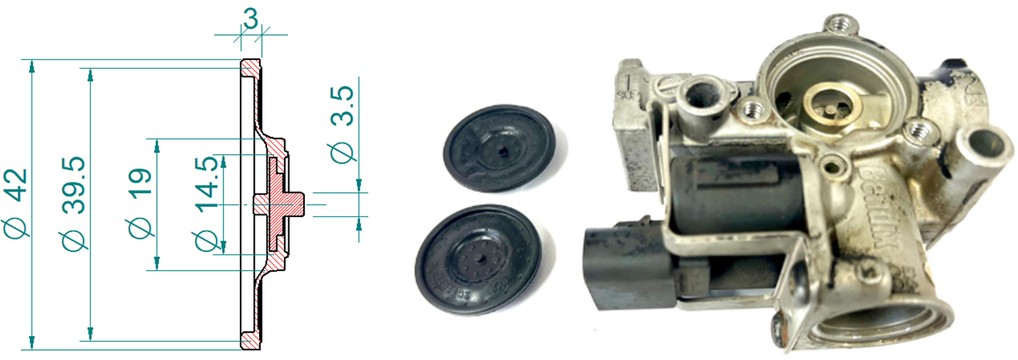

ABS Modulator Unit
MM33222
Relay Control Valves · Catalogue page 102
Product details
3541969C2 2 x SEALS Per KIT
About relay valve repair kits
Relay valves and modulators apply and release the brakes quickly using air from a nearby reservoir, controlled by a small signal from the foot valve.
When to replace
Delayed application, air leaking at the exhaust or uneven axle braking indicate worn relay valve seals and pistons.
What's in the kit
Relay control valve kits include inlet/exhaust valves, piston seals and O-rings, including modulator kits. All 37 relay control valves lines are manufactured by Pitchline Engineering in an ISO 9001 environment in Pinetown and supplied from our Pinetown branch across South Africa.
Relay Control Valves questions
What does a relay valve do in an air brake system?
It uses a control signal to deliver reservoir air rapidly to the brake chambers, speeding up application and release.
Why does my relay valve leak when the brakes are applied?
A worn inlet/exhaust valve or piston seal; a relay valve repair kit replaces them.
Does ManuMark supply ABS modulator kits?
Modulator kits are included in this category where listed.
