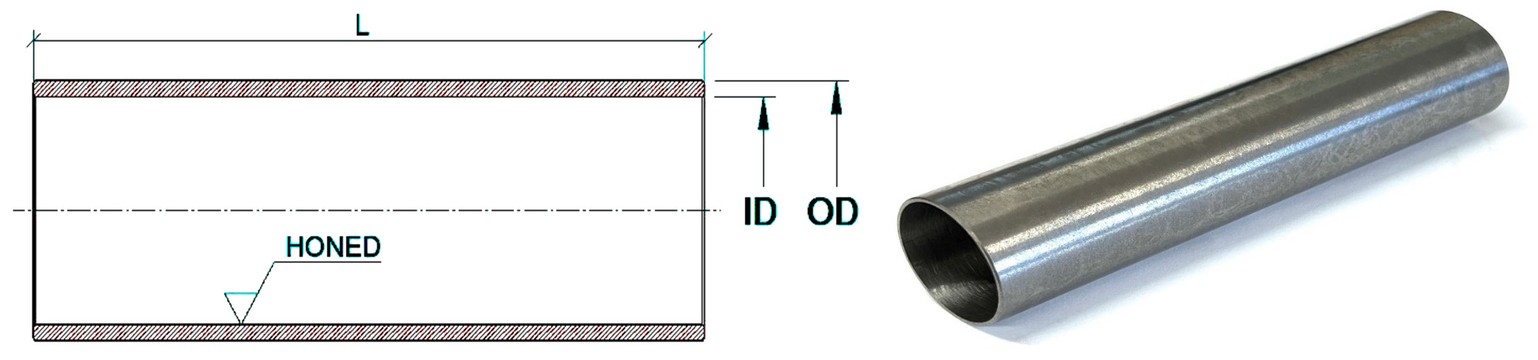

Cast Iron Sleeve — HSCI 1375/1590
MM3191-1
Sleeves · Catalogue page 108
Product details
Size: 1 3/8" Inside diameter: 34.93 Outside diameter: 40.3 Length: 139.7
All products
Sleeves repair kits
Cast iron sleeves with catalogue dimensions.
23 product lines · ManuMark 2026 catalogue
Fitting notice: Air brake components must be fitted by a qualified technician and matched to your vehicle’s exact part number.
23 products
Cast Iron Sleeve — HSCI 1870/2090
MM3191-10Sleeves · Catalogue page 108
Product details
Size: 47.5 mm Inside diameter: 47.50 Outside diameter: 53 Length: 152.4
Cast Iron Sleeve — HSCI 1875/2090
MM3191-11Sleeves · Catalogue page 108
Product details
Size: 1 7/8" Inside diameter: 47.63 Outside diameter: 53 Length: 152.4
Cast Iron Sleeve — HSCI 2000/2225
MM3191-12Sleeves · Catalogue page 108
Product details
Size: 2" Inside diameter: 50.80 Outside diameter: 56.4 Length: 139.7
Cast Iron Sleeve — HSCI 2106/2277
MM3191-13Sleeves · Catalogue page 108
Product details
Size: 53.5 mm Inside diameter: 53.50 Outside diameter: 57.8 Length: 139.7
Cast Iron Sleeve — HSCI 2187/2360
MM3191-14Sleeves · Catalogue page 108
Product details
Size: 2 3/16" Inside diameter: 55.55 Outside diameter: 60 Length: 152.4
Cast Iron Sleeve
MM3191-15Sleeves · Catalogue page 108
Product details
Size: 44 mm Inside diameter: 44.00 Outside diameter: 53 Length: 152.4
Cast Iron Sleeve
MM3191-16Sleeves · Catalogue page 108
Product details
Size: 1 7/16" Inside diameter: 36.50 Outside diameter: 42.00 Length: 139.7
Cast Iron Sleeve
MM3191-17Sleeves · Catalogue page 108
Product details
Size: 2 1/8" Inside diameter: 53.97 Outside diameter: 48.90 Length: 143.0
Cast Iron Sleeve
MM3191-18Sleeves · Catalogue page 108
Product details
Size: 33 mm Inside diameter: 33.00 Outside diameter: 35.65 Length: 153.0
Cast Iron Sleeve
MM3191-19Sleeves · Catalogue page 108
Product details
Size: 36 mm Inside diameter: 25.00 Outside diameter: 36.00 Length: 110.0
Cast Iron Sleeve — HSCI 1437/1590
MM3191-2Sleeves · Catalogue page 108
Product details
Size: 1 7/16" Inside diameter: 36.50 Outside diameter: 40.3 Length: 139.7
Cast Iron Sleeve
MM3191-21Sleeves · Catalogue page 108
Product details
Size: 46.8 mm Inside diameter: 44.45 Outside diameter: 46.80 Length: 201.50
Cast Iron Sleeve
MM3191-22Sleeves · Catalogue page 108
Product details
Size: 45.1 mm Inside diameter: 36.50 Outside diameter: 45.10 Length: 120.0
Cast Iron Sleeve
MM3191-23Sleeves · Catalogue page 108
Product details
Size: 43.5 mm Inside diameter: 38.10 Outside diameter: 43.50 Length: 201.50
Cast Iron Sleeve
MM3191-24Sleeves · Catalogue page 108
Product details
Size: 45.1 mm Inside diameter: 36.50 Outside diameter: 45.10 Length: 140.0
Cast Iron Sleeve — HSCI 1500/1715
MM3191-3Sleeves · Catalogue page 108
Product details
Size: 1 1/2" Inside diameter: 38.10 Outside diameter: 43.5 Length: 139.7
Cast Iron Sleeve — HSCI 1575/1777
MM3191-4Sleeves · Catalogue page 108
Product details
Size: 40 mm Inside diameter: 40.00 Outside diameter: 45.1 Length: 139.7
Cast Iron Sleeve — HSCI 1625/1840
MM3191-5Sleeves · Catalogue page 108
Product details
Size: 1 5/8" Inside diameter: 41.28 Outside diameter: 46.7 Length: 139.7
Cast Iron Sleeve — HSCI 1687/1840
MM3191-6Sleeves · Catalogue page 108
Product details
Size: 1 11/16" Inside diameter: 72.85 Outside diameter: 46.7 Length: 139.7
Cast Iron Sleeve — HSCI 1720/1965
MM3191-7Sleeves · Catalogue page 108
Product details
Size: 1.720" Inside diameter: 43.69 Outside diameter: 49.7 Length: 114.3
Cast Iron Sleeve — HSCI 1732/1965
MM3191-8Sleeves · Catalogue page 108
Product details
Size: 44 mm Inside diameter: 44.00 Outside diameter: 49.7 Length: 139.7
Cast Iron Sleeve — HSCI 1750/1965
MM3191-9Sleeves · Catalogue page 108
Product details
Size: 1 3/4" Inside diameter: 44.45 Outside diameter: 49.7 Length: 139.7
About air brake valve sleeves
Sleeves line the bore of a valve or cylinder, giving a fresh sealing surface without replacing the whole housing.
When to replace
Use a sleeve when the original bore is scored or worn and new seals alone will not stop the leak.
What's in the kit
ManuMark sleeves are precision machined to fit the corresponding valve bodies. All 23 sleeves lines are manufactured by Pitchline Engineering in an ISO 9001 environment in Pinetown and supplied from our Pinetown branch across South Africa.
Sleeves questions
Why fit a sleeve instead of a new valve?
A sleeve restores a worn bore at a fraction of the cost of a new housing.
Are ManuMark sleeves machined to size?
Yes. They are CNC turned and ground by Pitchline Engineering.
How do I choose the right sleeve?
Use the part numbers listed here or send the valve reference to ManuMark.
