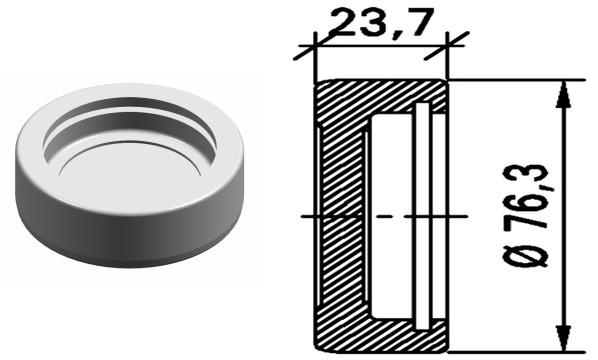

Calliper Main Piston
MM1975/1
Calliper Pistons · Catalogue page 25
Product details
Diameter = Ø 76.29 Length = 23.7
All products
Calliper Pistons repair kits
Replacement calliper pistons and associated dimensions.
19 product lines · ManuMark 2026 catalogue
Fitting notice: Air brake components must be fitted by a qualified technician and matched to your vehicle’s exact part number.
19 products

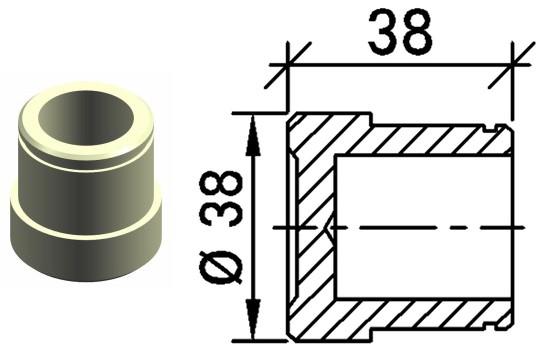

Calliper Inner Piston
MM2051
Calliper Pistons · Catalogue page 25
Product details
Diameter = Ø 38 Length = 38

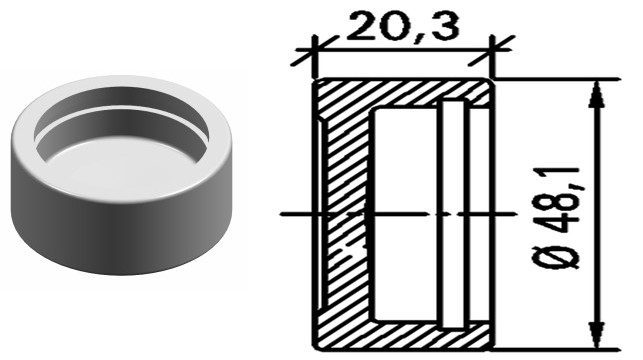

Calliper Main Piston
MM2058
Calliper Pistons · Catalogue page 25
Product details
Diameter = Ø 48.1 Length = 20.3

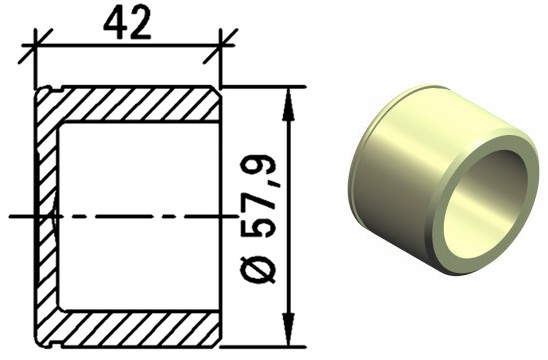

Calliper Inner Piston
MM2061-4
Calliper Pistons · Catalogue page 25
Product details
Diameter = Ø 57.9 Length = 42

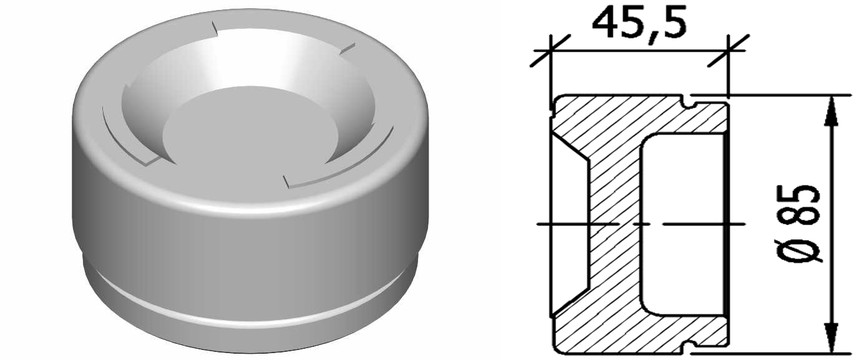

BELL Calliper Piston
MM2781
Calliper Pistons · Catalogue page 26
Product details
Diameter = Ø 85 Length = 45.5 KNOTT Calliper BELL B35D B40D For KIT see MM33095 & MM33095 Lean

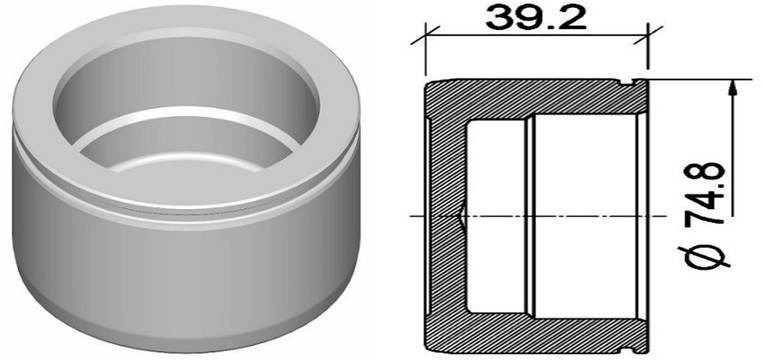

FURUKAWA Piston
MM3045
Calliper Pistons · Catalogue page 26
Product details
Diameter = Ø 74.8 Length = 39.2 Goes with MM66011/B

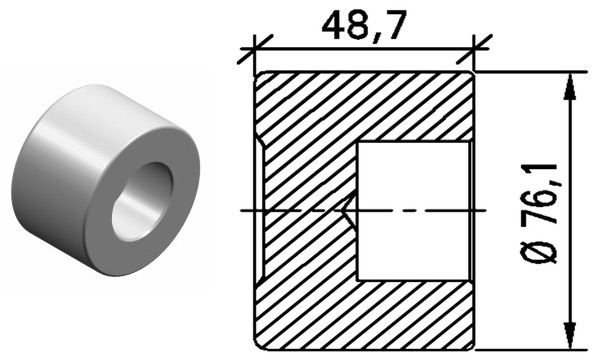

Calliper Main Piston
MM33089/1
Calliper Pistons · Catalogue page 26
Product details
Diameter = Ø 76.1 Length = 48.7 BELL B30 BELL B25 (218439) For KIT see MM33089 or MM33089/B ROCKWELL 4 Pistons per Kit

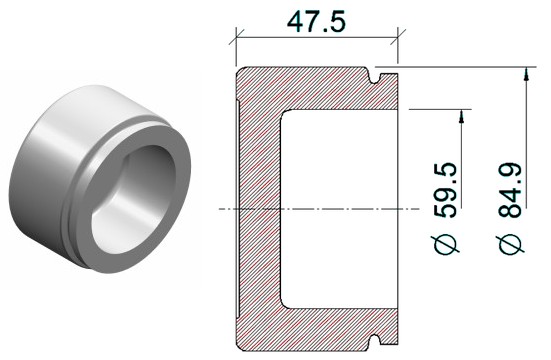

Calliper Main Piston
MM33095/1
Calliper Pistons · Catalogue page 26
Product details
Diameter = Ø 84.9 Length = 47.5 BELL CALLIPER For KIT see MM33095 or MM33095/B

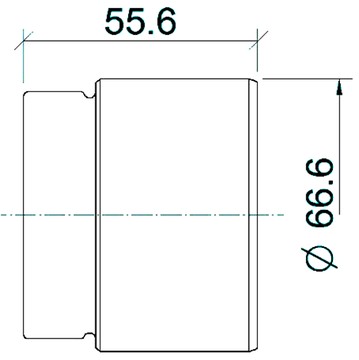

MERITOR Piston Assembly
MM66006
Calliper Pistons · Catalogue page 27
Product details
Diameter = Ø 66.6 Length = 55.6

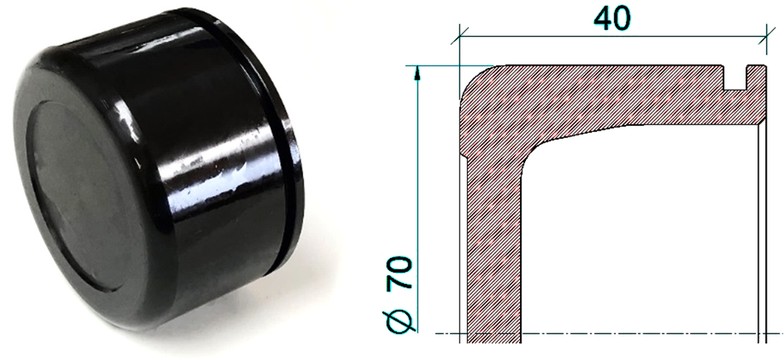

LIUGONG Calliper Piston
MM66010/1
Calliper Pistons · Catalogue page 27
Product details
Diameter = Ø 70 Length = 40

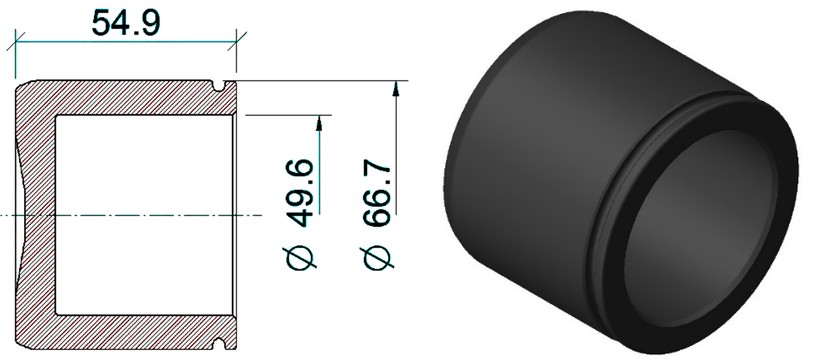

Calliper Piston
MM3621
Calliper Pistons · Catalogue page 27
Product details
Diameter = Ø 66.7 Length = 54.9 See MM3621/1 for the Seal Kit

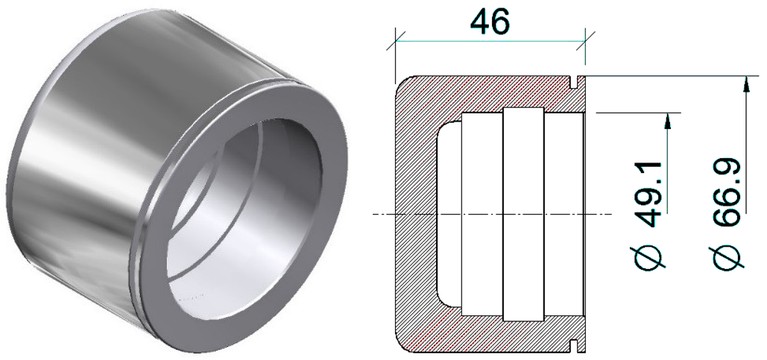

Calliper Piston
MM3658
Calliper Pistons · Catalogue page 27
Product details
Diameter = Ø 66.9 Length = 46

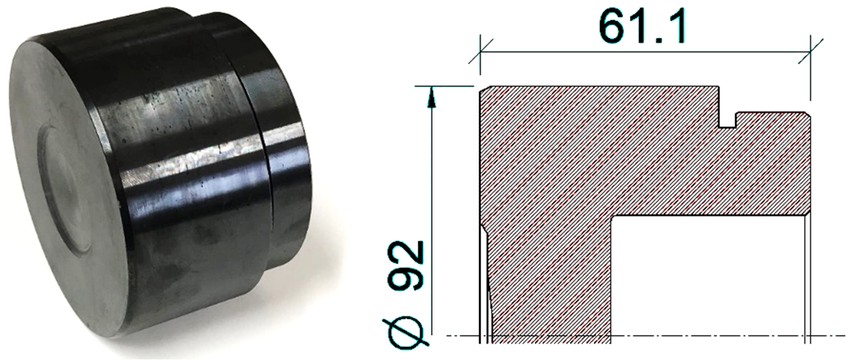

Calliper Piston
MM3830
Calliper Pistons · Catalogue page 28
Product details
Diameter = Ø 92 Length = 61.1

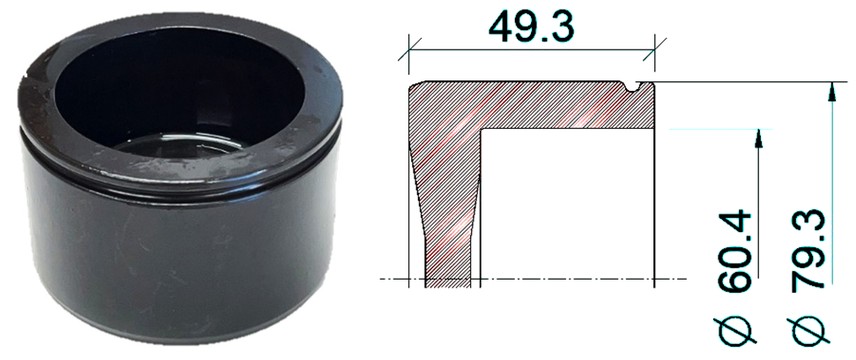

Calliper Piston
MM4025
Calliper Pistons · Catalogue page 28
Product details
Diameter = Ø 79.3 Length = 49.3 For KIT see MM66009 or MM66009B

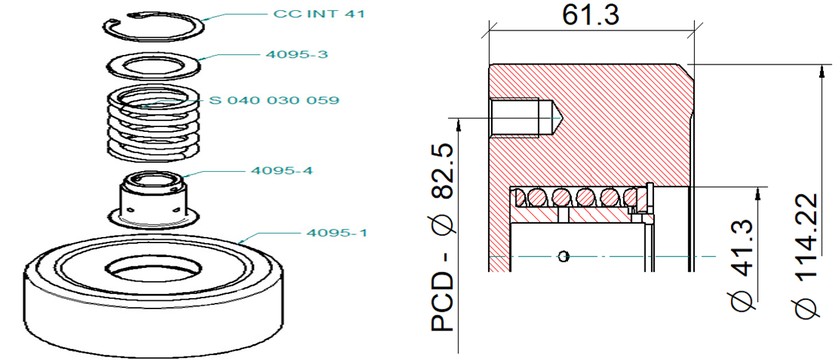

Calliper Piston
MM4095
Calliper Pistons · Catalogue page 28
Product details
Diameter = Ø 114.2 Length = 61.3

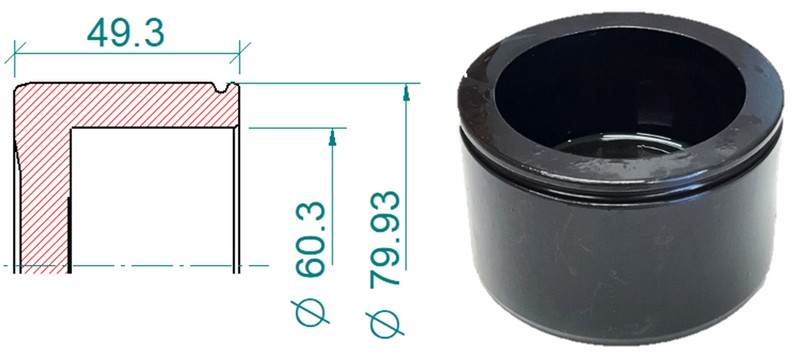

Calliper Piston
MM4159
Calliper Pistons · Catalogue page 28
Product details
Diameter = Ø 79.93 Length = 49.3

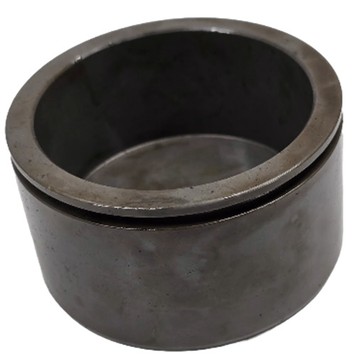

Calliper Piston
MM4167
Calliper Pistons · Catalogue page 29
Product details
Diameter = 72Ø x 60.3 x 40.4 78/74548E

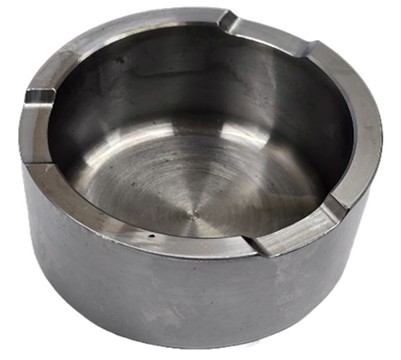

Calliper Piston – Liugong ZL50CX
MM4168
Calliper Pistons · Catalogue page 29
Product details
Diameter = 75 Ø x 47.5 Liugong ZL50CX Wheel Loader

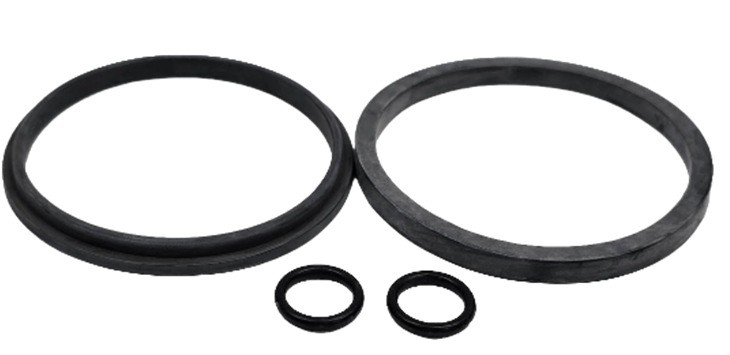

Calliper SEAL KIT (Brake Fluid)
MM4168/1
Calliper Pistons · Catalogue page 29
Product details
Calliper SEAL KIT (Brake Fluid) Luigong ZL50CX Wheel Loader ** ONE KIT DOES FOUR PISTONS **
About brake calliper pistons
The calliper piston transfers force to the brake pad. A scored or corroded piston damages seals and causes leaks or sticking.
When to replace
Pitting, corrosion or scoring on the piston surface, or seals that keep failing after a rebuild, mean the piston itself should be replaced.
What's in the kit
ManuMark calliper pistons are precision machined and ground to size, ready to fit with a matching calliper seal kit. All 19 calliper pistons lines are manufactured by Pitchline Engineering in an ISO 9001 environment in Pinetown and supplied from our Pinetown branch across South Africa.
Calliper Pistons questions
When should a calliper piston be replaced rather than reused?
Whenever the sealing surface is pitted, scored or corroded, because a new seal will not hold against a damaged piston.
Are ManuMark pistons machined locally?
Yes. They are CNC turned and ground by Pitchline Engineering in Pinetown.
How do I identify the right piston?
Use the ManuMark part number, or the diameter and calliper reference, listed on this page.
