Shaft = 13.0mm Piston = 115mm Single
MM33012
Airmasters · Catalogue page 9
Product details
Single/Major 9323-01841 9323-0185 Related Piston 233-11501 (not included)
All products
Airmasters repair kits
Airmaster kits, hydraulic pistons, shafts, relays and related components.
23 product lines · ManuMark 2026 catalogue
Fitting notice: Air brake components must be fitted by a qualified technician and matched to your vehicle’s exact part number.
23 products
Shaft = 13.0mm Single (Minor Kit)
MM33021No image available
Airmasters · Catalogue page 9
Refer to our sales team for compatibility details.
Shaft = 13.0mm Piston = 115mm Double
MM33027
Airmasters · Catalogue page 9
Product details
Related Piston 233-11501 (not included)
Shaft = 14.5mm Piston = 115mm Single
MM33014
Airmasters · Catalogue page 10
Product details
Major 9323-3031 ISUZU / JCR Related Piston 233-11501 (not included)
Shaft = 14.5mm Single (Minor Kit)
MM33020
Airmasters · Catalogue page 10
Refer to our sales team for compatibility details.
Shaft = 14.5mm Piston = 115mm Double
MM33015
Airmasters · Catalogue page 10
Product details
Double Piston Major 9323-1575 ISUZU / JCR
Shaft = 16.0mm Piston = 138mm
MM33040
Airmasters · Catalogue page 10
Product details
TOYOTA / DAF / FG Series / NISSAN Related Piston 234-11503 (not included) Relay Kit Included (normal piston) No Poppit & No Diaphragm Assembly See MM25026 for Poppit Assembly See MM1812 for 29mm Cylinder See MM1906 for HINO Bull Nose with Quick Release
Shaft = 16.0mm Piston = 138mm (Modified)
MM33040/1
Airmasters · Catalogue page 11
Product details
Airmaster contains NO quick release / relay valve Poppit Included Relay NOT Included
Quick Release for MM33040/1
MM33040/2
Airmasters · Catalogue page 11
Refer to our sales team for compatibility details.
Shaft = 18.5mm Piston = 138mm
MM33016
Airmasters · Catalogue page 11
Product details
Related Piston 234-11510 (not included) Shaft = 18.5mm Piston = 138mm Hex Relay
Airmaster — Shaft 18.5mm, Piston 138mm, Hex Relay
MM33013
Airmasters · Catalogue page 11
Refer to our sales team for compatibility details.
Airmaster — Shaft 18.5mm, Piston 138mm, Hex Relay
MM33013/1Airmasters · Catalogue page 11
Refer to our sales team for compatibility details.
Diaphragm Assembly (138 x 18.5 Hex)
MM33013/2
Airmasters · Catalogue page 12
Refer to our sales team for compatibility details.
Airmaster Hydraulic Master Cylinder (26.7mm Bore)
MM1379
Airmasters · Catalogue page 12
Refer to our sales team for compatibility details.
Airmaster Hydraulic Master Cylinder (25.5mm Bore)
MM1379/1
Airmasters · Catalogue page 12
Refer to our sales team for compatibility details.
Airmaster Hydraulic Master Cylinder (25.5mm Bore)
MM1812
Airmasters · Catalogue page 12
Product details
See MM33040 for Airmaster Kit
Airmaster Poppit Valve Assembly
MM25026
Airmasters · Catalogue page 13
Product details
ASSEMBLY POSITION
Airmaster Relay Valve
MM33018
Airmasters · Catalogue page 13
Refer to our sales team for compatibility details.
Airmaster Relay Valve
MM33019
Airmasters · Catalogue page 13
Refer to our sales team for compatibility details.

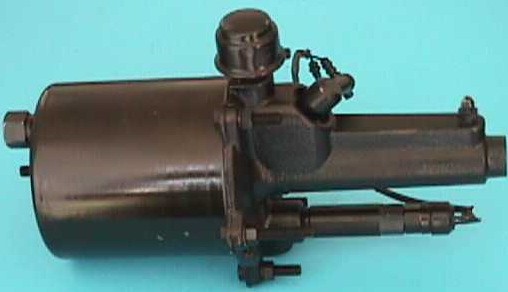

ISUZU F8000 Shaft = 16.0mm Piston = 138mm
MM33032
Airmasters · Catalogue page 13
Product details
Shaft = 16.0mm Piston = 138mm HINO CH12 HINO 235-06570 HINO 44640-2900 ISUZU OEM 1-85576-1670 JCC 234-06521 J.K.C. – MM33032 NABCO 47250-225007 UNITE 234-0555/47800-396
ISUZU F8000 Shaft = 16.0mm Piston = 115mm
MM33032/1
Airmasters · Catalogue page 14
Product details
Shaft = 16.0mm Piston = 115mm HINO CH12 HINO 235-06570 HINO 44640-2900 ISUZU OEM 1-85576-1670 JCC 234-06521 J.K.C. – MM33032 NABCO 47250-225007 UNITE 234-0555/47800-396

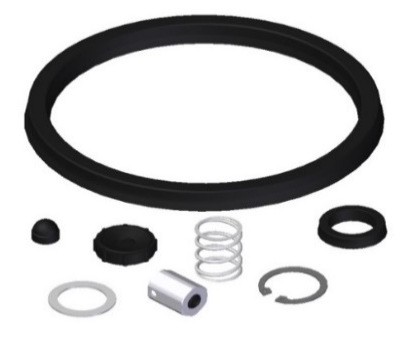

Airmaster ISUZU FTR 800 16mm Shaft
MM33202
Airmasters · Catalogue page 14
Product details
138mm Piston 1-47800-644 236-04159 Includes O-Rings & Oil Seals

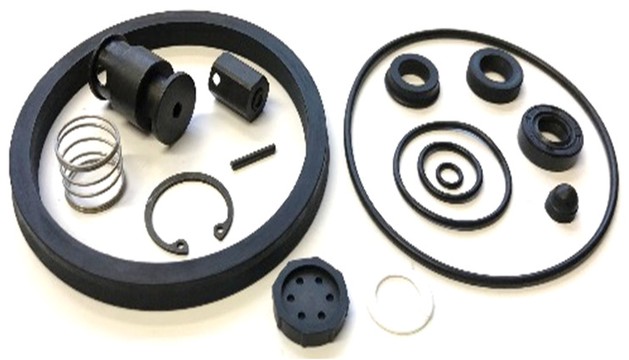

TOYOTA HINO 500 Airmaster
MM33213
Airmasters · Catalogue page 14
Product details
236-02607 236-02645 4464-03291 # 9323-3811 Brake Fluid Shaft Size = Ø 12mm Pot Size = Ø 115mm
About airmaster repair kits
An airmaster (air-over-hydraulic booster) uses air pressure to boost hydraulic brake or clutch pressure on medium commercial vehicles.
When to replace
Spongy brakes, air escaping from the exhaust port or brake fluid at the air side indicate leaking piston seals or a tired diaphragm inside the airmaster.
What's in the kit
Kits include piston cups, seals, O-rings and diaphragms for the hydraulic and air sections of the airmaster units in the range. All 23 airmasters lines are manufactured by Pitchline Engineering in an ISO 9001 environment in Pinetown and supplied from our Pinetown branch across South Africa.
Airmasters questions
What is an airmaster on a truck?
It is an air-over-hydraulic unit that uses compressed air to multiply hydraulic pressure for the brakes or clutch.
Can an airmaster be rebuilt instead of replaced?
Yes. When the bore is in good condition, a repair kit restoring the seals and diaphragm is the economical fix.
How do I find the right airmaster kit?
Match the unit's part number to the ManuMark part numbers listed on this page, or send the number to craig@manumark.com.
